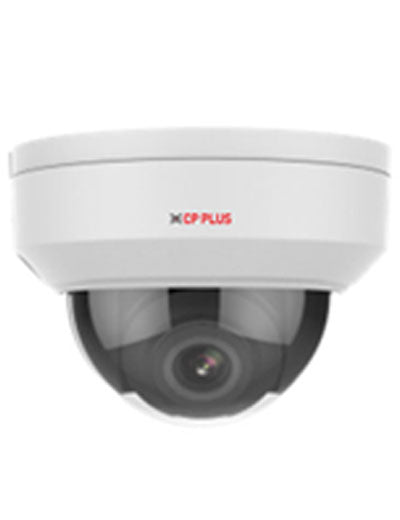

Cp Plus VMD 4 MP WDR IR Vandal Dome Camera 30Mtr


Sale price30.000 BHD


  • 1/3" 4MP PS CMOS Image Sensor (0.84667cm)
  • Max: 20 fps@4MP(2592×1520)
  • Ultra H.265, H.265, H.264, MJPEG Triple-stream encoding
  • WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Corridor Mode, Digital defog, ROI, AWB, AGC, BLC
  • 2.8mm Lens (3.6mm Optional)
  • IR Range of 30 Mtrs, Micro SD Card, IP67, IK10, PoE
  • Supports Instastream technology, save diskspace and bandwidth upto 70%
  • Mobile Software: Android, iOS
  • CMS Software: IVMS


Image Sensor 1/3" 4MP PS CMOS Image Sensor (0.84667cm)
Minimum Illumination Colour: 0.03Lux (F2.0, AGC ON) 0 Lux with IR
BodyType Vandal Dome
Shutter Speed Auto/Manual, 1~1/100000 s
White Balance Auto/Manual
Lens 2.8mm Lens ( 3.6mm Optional)
AGC Control Auto/Manual
Video Compression Ultra H.265, H.265, H.264, MJPEG
S/N Ratio >55dB
Back Light Comp. BLC/HLC/WDR(120dB)
Frame Rate Main Stream: 4MP (2592x1520), Max 20fps; 4MP (2560x1440), Max 25fps; 3MP (2048x1520), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Streaming Triple
Resolution 2592 × 1520
ICR IR-cut filter with auto switch (ICR)
ROI Up to 8 areas
Audio Input impedance 35 kO; amplitude 2 V [p-p]
Audio Output impedance 600 O; amplitude 2 V [p-p]
Alarm IN 1 IN
Alarm Out 1 Out
Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
IR Range IR Range of 30 Mtr.
Micro SD Micro SD, up to 256GB
Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
Humidity <95% RH(non-condensing)
Power Source 12 V DC, or PoE (IEEE802.3 af)
Power Consumption Max 5W
Weatherproof Standard IP67 & IK10
Dimension Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight 0.45 kg
