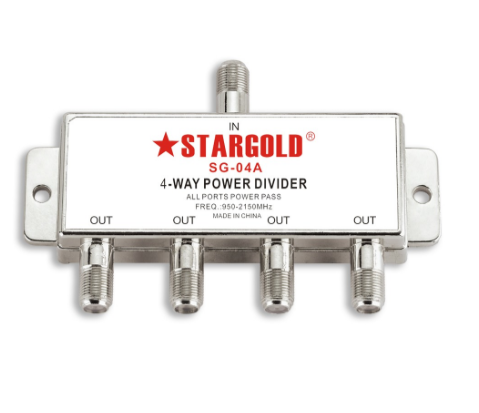

Stargold SG-04A Satellite Splitter’s

The 04 Way Power Divider is a specialized device designed to split a single input signal into four distinct output signals. It operates effectively within the frequency range of 950 to 2150 MHz, making it particularly suitable for satellite TV systems, telecommunications, and other RF signal distribution applications. This device is engineered to handle high-frequency signals while allowing DC power to pass through all ports, which is essential for powering connected equipment.

Key Features:

1. Frequency Range:

   • Range: 950-2150 MHz
   • Application: This broad frequency range ensures compatibility with various satellite and communication systems. It is ideal for scenarios where high-frequency signal distribution is required, such as distributing satellite TV signals to multiple receivers.

2. Power Passing:

   • Ports: All output ports are power passable.
   • Functionality: This feature allows DC power to be transmitted through the divider to the connected equipment, such as Low Noise Block converters (LNBs) or signal amplifiers. This capability is crucial in satellite systems where the LNB requires power from the receiver.

3. Signal Distribution:

   • Configuration: Splits one input signal into four output signals.
   • Use Case: Essential in situations where a single signal source needs to be distributed to four separate devices or systems. For example, it can be used to distribute a single satellite signal to four different TV receivers or set-top boxes.

Specifications:

• Model Type: 04 Way Power Divider
• Frequency Range: 950-2150 MHz
• Power Passing: Yes, on all ports
• Configuration: 4 Output Ports

Advantages:

• Wide Frequency Range: The 950-2150 MHz range covers typical satellite TV frequencies, making it versatile for various high-frequency signal needs.
• Power Pass Through Capability: Ensures that connected equipment, such as LNBs or amplifiers, receive the necessary power to function correctly. This is particularly useful in satellite systems where power needs to be delivered through the coaxial cables.
• Efficient Signal Distribution: Maintains signal integrity while distributing the input signal across four outputs, ensuring minimal loss and high performance.

Ideal Use Cases:

• Satellite TV Systems: Perfect for distributing a single satellite signal to four different TVs or satellite receivers in a household or building.
• Telecommunications: Useful in telecommunication setups where a single RF signal needs to be distributed to multiple points within a network.
• General RF Signal Distribution: Suitable for any application where a high-frequency signal needs to be split into four separate paths, such as in test setups or distribution systems.

Operational Considerations:

1. Installation:

   • Connections: Ensure that all connections are secure and properly aligned to prevent signal loss or degradation.
   • Environment: Install the power divider in a dry, stable environment to protect it from moisture and physical damage.

2. Maintenance:

   • Check Connections: Regularly inspect the connections to ensure they remain secure and free from corrosion.
   • Monitor Performance: Periodically check the signal strength and quality to ensure the power divider is operating correctly.

The 04 Way Power Divider is a crucial component in signal distribution systems, providing reliable performance and versatility for a variety of high-frequency applications. Its ability to split signals efficiently while allowing power pass-through makes it an invaluable tool for both residential and commercial setups.
