Ransor Cat8 5m 15ft Premium Ethernet Cable Black

SKU: RNSR-CBL-NR5MB

Price:
Sale price5.000 BHD

Description

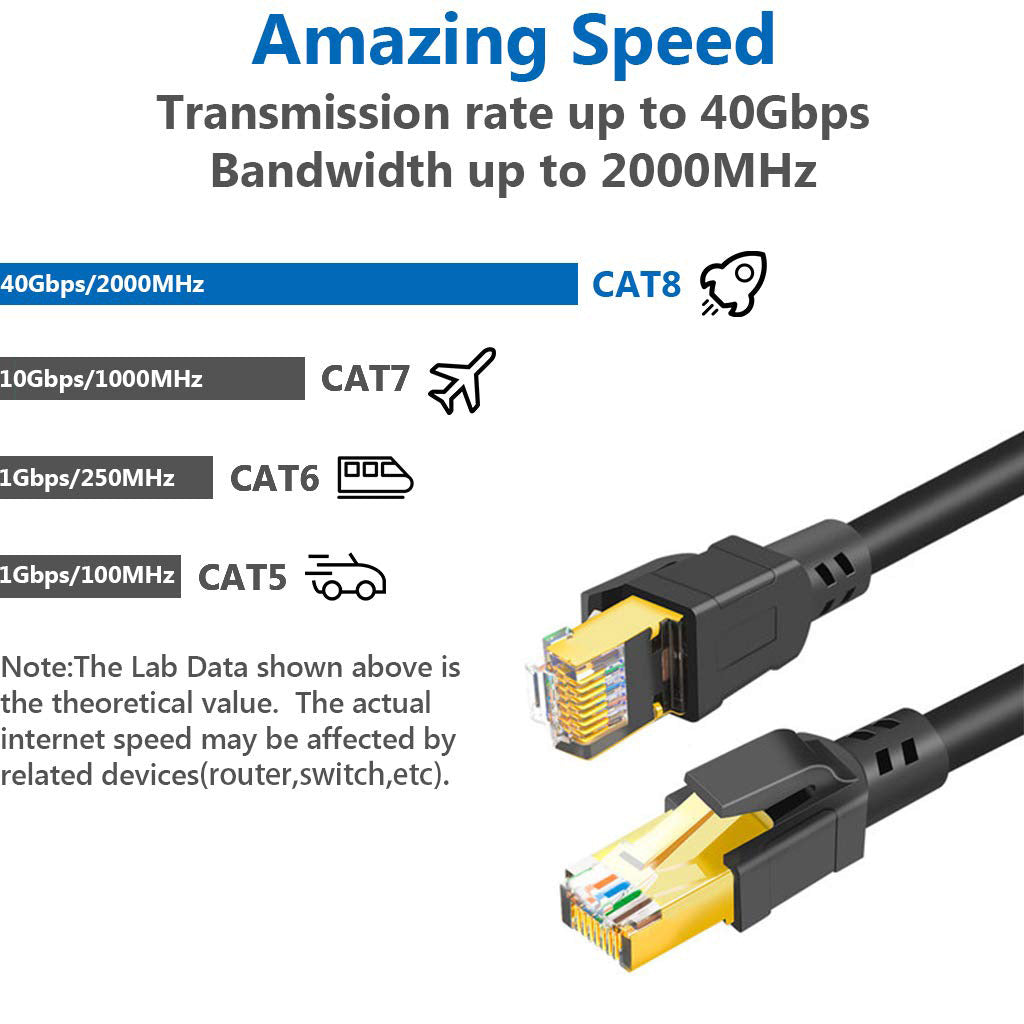

  • Amazing Speed - Cat8 ethernet cable supports bandwidth up to 2000MHz and up to 40Gbps data transmitting speed, making it the fastest network cable standard available today. We also bundled with 30 cable clips and 2 cable straps for free.
  • Universal Compatibility - Cat8 network cabler is ideal for networking switch, routers, ADSL, adapters, hubs, modems, PS3, PS4, Xbox, patch panels, servers, laptops and more. And compatible with Cat7, Cat6, Cat6e, Cat5, Cat5e. Free maintenance for 2 years.
  • High-Quality Construction and Material
  • Artistic and Durable Design
  • Better Connector and Higher Standard
  • Manufacturer
     RANSOR
  • Weight
     0.03 kg

Features

• High bandwidth 2000 MHz patch cord to support high data rates with low BER

• The cable contains 4 individually aluminum-foil screened 24AWG solid twisted pairs, overall braid shielded and jacketed with FR-LSZH compound

• Cable construction provides excellent EMI/RFI protection and alien crosstalk suppression

  • Amazing Speed - Cat8 ethernet cable supports bandwidth up to 2000MHz and up to 40Gbps data transmitting speed, making it the fastest network cable standard available today. We also bundled with 30 cable clips and 2 cable straps for free.
  • Universal Compatibility - Cat8 network cabler is ideal for networking switch, routers, ADSL, adapters, hubs, modems, PS3, PS4, Xbox, patch panels, servers, laptops and more. And compatible with Cat7, Cat6, Cat6e, Cat5, Cat5e. Free maintenance for 2 years.
  • High-Quality Construction and Material
  • Artistic and Durable Design
  • Better Connector and Higher Standard

Patch Cable

Cable

Cat.8 26AWG 7*0.16mm Bare Copper PVC Patch Cord

Usage

Patch Cable Indoor Work-Area

Conductors

4 Twisted Pairs, 26 AWG 7*0.16mm Stranded Bare Copper

Conductors Insulation

Ø1.05mm Nom. Material: SFS PO

Color Code

Per TIA/EIA 568-B

Twisted Pair Shield

Aluminum/Polyester Foil, Aluminum face outwards, 100%

coverage

Overall Shield

AL braid, Coverage : 60% Nom.

Outer Jacket

Ø6.3mm Nom., PVC, Color: Customed

Frequency Range

Frequency Range: 1 - 2000 MHz

Impedance

Impedance: 100 Ω

Coupling Attenuation

Type I

Max. DC Resistance

140 Ω/km@20°C

Max. Resistance Unbalance

2%

Capacitance Unbalance

1.2 pF/m max.

Velocity of Propagation

75 % nom.

Propagation Delay Skew

20 ns/100m max.

Dielectric Strength

700 V/minute

Dielectric Strength to Shield

700 V/minute

Min. Insulation Resistance

5 GΩ/km

Short Term Tensile Strength

14 kgf max.

Long Term Tensile Strength

7 kgf max.

Min. Bend Radius

Min. Bend Radius: 60 mm

Max. Pulling Tension

15 kgf

Operating Temperature

Min. -40 °C, Max. +65 °C



Plugs

Housing & Boot

PC Resin, UL 94V0

Shielding

Copper Alloy , Nickel plated

Contacts

Phosphor Bronze, 50µ” Hard Gold Plating Over Nickel

Dimensions

Per IEC 60603-7

Color Code

Per TIA/EIA 568B

Durability

750 Mating Cycles min.
