Stargold Satellite Dish Antenna

Brand: STARGOLD

Item: Satellite Dish Antenna

Model Number: SG-KU90CM

Features:

1. Caliber:

   • Short Axle: 80 cm
   • Long Axle: 90 cm

2. Focus Length:

   • 510 mm

3. KU-band Gain:

   • 12.5GHz: 38.86 dBi

4. Material:

   • Iron Plate

5. Surface:

   • Spray Plastic

6. Stand:

   • Wall Ground Multi-Purpose Type

7. Angle of Elevation:

   • 0°-90°

8. Azimuth:

   • 0°-360°

9. Wind Speed Resistance:

   • Can Receive: 25 m/sec
   • Works Under Weak Signal: 40 m/sec
   • Not Damage: 60 m/sec

10. Operating Conditions:

    • Temperature Range: -40℃ to 60℃
    • Relative Humidity: 0-100%

The STARGOLD SG-KU90CM Satellite Dish Antenna is designed for optimal signal reception and durability. Here are the key features and specifications:

Key Features:

1. Caliber Dimensions:

   • The dish has a short axle diameter of 80 cm and a long axle diameter of 90 cm, providing a large surface area for enhanced signal capture.

2. Focus Length:

   • With a focus length of 510 mm, the dish is precisely engineered to focus signals accurately for clear reception.

3. KU-band Gain:

   • The antenna offers a high gain of 38.86 dBi at 12.5GHz, ensuring strong and reliable signal reception for KU-band frequencies.

4. Durable Construction:

   • Made from iron plate material and coated with a spray plastic surface, the dish is built to withstand harsh weather conditions.

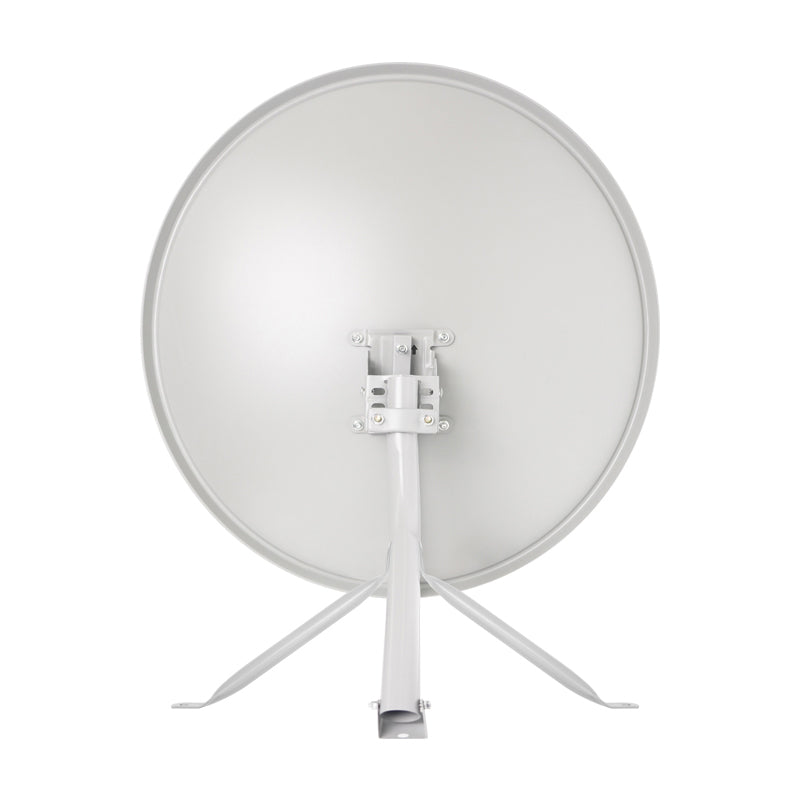

5. Versatile Stand:

   • The multi-purpose stand allows for both wall and ground mounting, providing flexibility in installation.

6. Wide Angle Range:

   • The dish supports an elevation angle range of 0°-90° and an azimuth range of 0°-360°, enabling precise alignment for optimal signal reception.

7. Wind Resistance:

   • The dish is designed to withstand high wind speeds, operating effectively at 25 m/sec, under weak signal conditions at 40 m/sec, and remaining undamaged at 60 m/sec.

8. Operating Environment:

   • Capable of functioning in extreme temperatures ranging from -40℃ to 60℃ and in relative humidity conditions from 0-100%, making it suitable for various climates.

The STARGOLD SG-KU90CM Satellite Dish Antenna is a robust and versatile choice for reliable satellite signal reception, engineered to perform under a wide range of environmental conditions.
